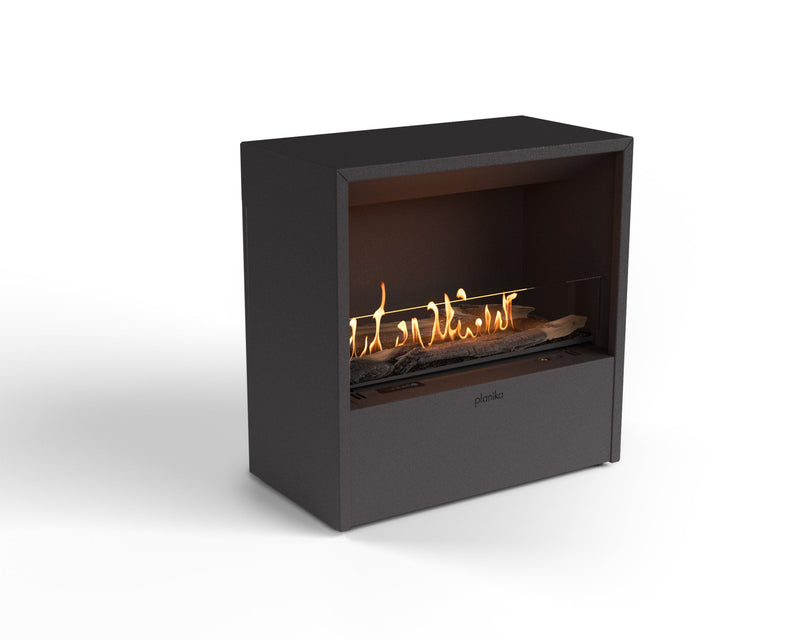

Planika Cottage - freestanding bioethanol fireplace with automatic burner

Description

Cottage is a freestanding bio-fireplace that stands out for its versatility and elegant design, ideal for placement in any part of the home. This fireplace does not require a chimney, which allows for greater flexibility in interior design, adding warmth and character wherever needed.

Key Features:

• BEV® Technology: Offers clean combustion without smoke, unpleasant odors, or ash. This technology ensures that the flame is created only from ethanol vapors, eliminating direct contact with liquid fuel and increasing safety.
• Freestanding Design: Easily placeable in various environments thanks to its self-supporting design, Cottage is perfect for any interior, from traditional to modern.

Comfort and Control:

• Wide Flame and Greater Heat: The Neo 500 burner, filled with foam glass, creates a wider and more powerful flame, enriching the room's ambiance.
• Remote Control: Allows convenient adjustment of flame intensity across two settings, adapting heat and atmosphere to your preferences.

Decorative Options:

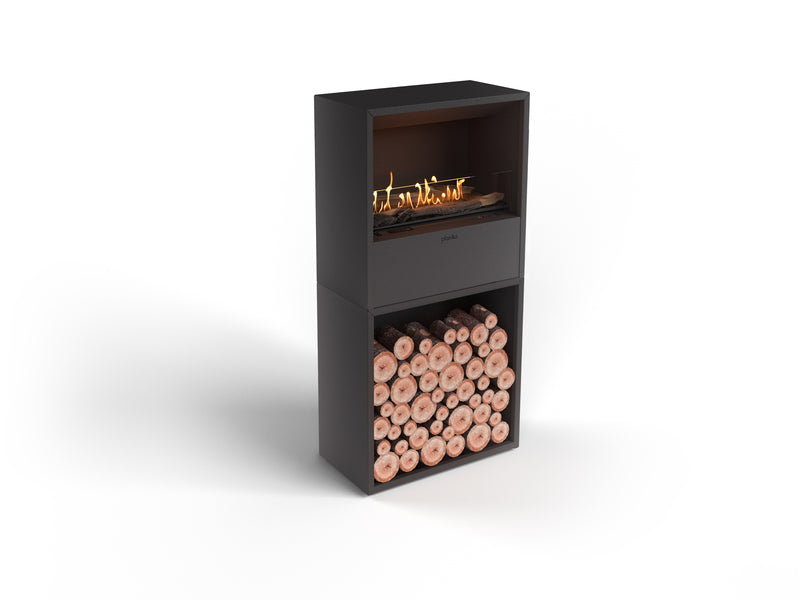

• Decorative Wood and Optional Logbox: Offers the possibility of adding a decorative element with ceramic logs, placed on a bed of foam glass to emulate the look of a real wood-burning fireplace.

Smart Refueling System:

• Automatic Refueling: Equipped with a dedicated pump that automatically regulates the flow of bioethanol, ensuring easy and safe use. The system automatically stops refueling once the maximum tank capacity is reached.

Advantages of BEV technology:

• Operation: Automatic mode manages fire filling, ignition, and extinguishing via an automatic pump, significantly increasing safety.

• Technology: Equipped with technological advancements such as remote control and timer, it also includes safety sensors that stop operation in the event of anomalies.

• Comfort: User comfort is enhanced through remote control and programmable functions. A closed combustion chamber prevents bioethanol evaporation, allowing the flame to remain active until the tank is completely empty.

• Safety: Enhanced by sensors capable of detecting overheating or other technical issues. Furthermore, automatic refueling eliminates direct contact with bioethanol, further increasing safety.

• Combustion efficiency: BEV technology optimizes combustion efficiency by burning bioethanol vapor rather than liquid. This system requires less bioethanol and reduces the cost of maintaining the flame.

Cottage represents an ideal solution for those seeking a fireplace that combines style, safety, and functionality, easily adaptable to any environment without the need for complex installations.

Technical Data

• Dimensions: 60.05 cm W x 32 cm D x 61.22 cm H
• Niche Dimensions: 60.10 cm W x 32 cm D x 60 cm H
• Fuel Tank Capacity: 1.3 L
• Maximum Burn Time: 4.0 hours
• Maximum Heat Output: 4.1 kW
• Minimum Room Volume: 41 m3
• Flame Height Adjustment: 2 stages
• Fuel Type: Bioethanol 95 – 96.6%
• Chimney: Not required
• Air Change Rate: 1 volume of space per hour
• Power Supply: 230 V
• Finish: Black powder coating
• Materials: Steel, galvanized steel, tempered glass
• Application: For indoor use only
